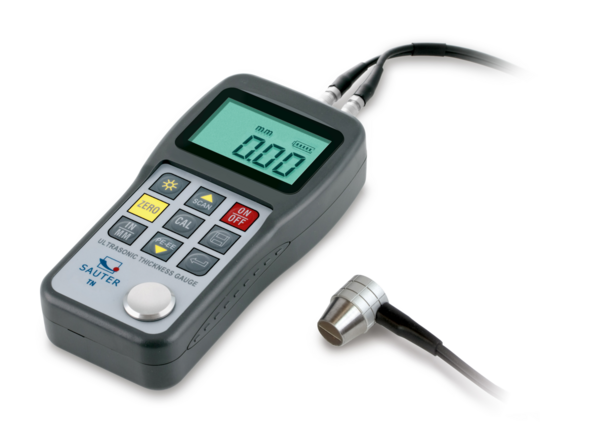

SAUTER, TN 230-0.1US | Ultrasonic Thickness Gauge external
Prod #TN 230-0.1US
Description
- External measuring head
- Data interface USB standard
- Scan mode (10 measurements per sec.) or single point measuring mode possible
- Internal memory for up to 20 files (with up to 100} values per file)
- Selectable measuring units: mm inch
- Scope of delivery: Operating instructions, batteries, external measuring head (∅ 10 mm) and ultrasound contact gel
- Delivered in a robust carrying case
Applications
Main fields of application / Primary application areas
- Metal processing and mechanical engineering
- Oil and gas industry
- Aerospace engineering
- Plastics technology
- Shipping industry
Product Overview
Technical Data
| Material thickness pulse-echo [Max] (mm) | 230 mm |
| Material thickness pulse-echo [Min] (mm) | 1,2 mm |
| Measuring range pulse-echo | 1,2 mm – 230 mm |
| Readability material thickness [d] (mm) | 0,1 mm |
| Tolerance (% of [Max]) | 0,5% |
| Units | mm, inch |
| Speed of sound [Max] (m/s) | 9999 m/s |
| Speed of sound [Min] (m/s) | 1000 m/s |
| Speed of sound | 1000 m/s – 9999 m/s |
| Measuring head measuring frequency | 5 MHz |
| Battery | 2×1.5 V AA |
| Material housing | plastic |
| Dimensions completely mounted (W×D×H) | 150×74×32 mm |
| Cable length | 0,9 m |
PT. SAKA jual Material Thickness Gauge dari Sauter dengan harga murah. Kami menyediakan after sales service sehingga Anda dapat menggunakan produk Sauter dengan nyaman. Kami berharap keberadaan SAKA sebagai distributor Sauter Indonesia, dapat membantu menyediakan produk lainnya. Sehingga informasi bisa dibutuhkan oleh pengguna, khususnya pengguna produk Sauter di Indonesia. Silahkan hubungi kami untuk informasi lebih lanjut tentang Material Thickness Gauge.
